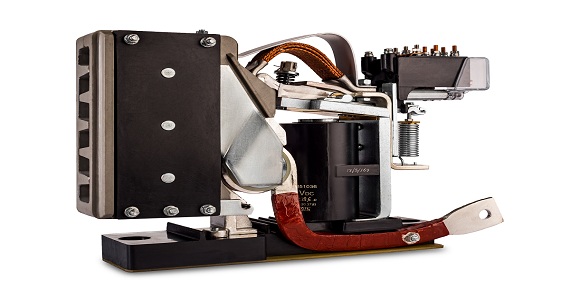

EM Contactor Type (9-5022EC6 WITH INTERLOCK TYPE : 9-41N)

Make : Inderr
Type : EM (Electro Magnetic)
Rated Voltage : 750V
Rated Current : 500A
Braking Load : Inductive
No. of Auxiliary contracts : 3 No, 3 NC
Rated Control Circuit Voltage : 74 V DC
Material of the contracts : CU-TG-AG
Operating Voltages : All Equipment can be supplied in Control Voltages – 24V, 48V, 74V, 110DC
Operating Temperature : -20° to + 77° C
Standard Qualified : IEC-77, IEC-61373
Cycle Testing : Upto 1 Lakh

Category: Contactors
